RMS-G10

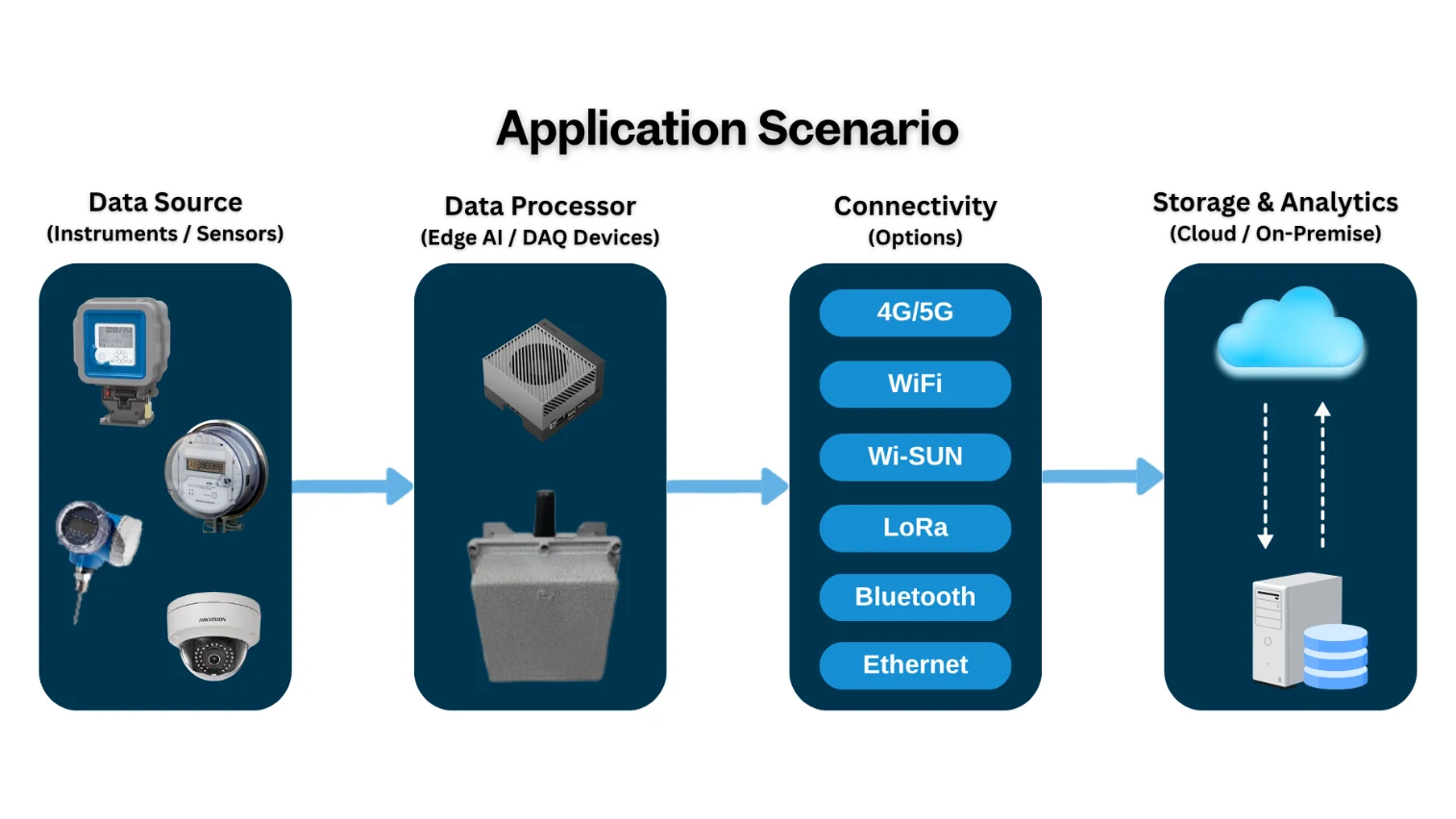

Applications

• Telemetry
• Smart Cities
• Remote Monitoring & Supervisory Control
• Smart Metering Infrastructure
• Remote Device Control
• General IoT and IIoT Applications

Industries

• Oil & Gas
• Mining
• Manufacturing
• Utilities
• Agriculture
• Smart Infrastructure & Facilities
• Supply Chain, Logistics & Cold Chain

Features and Highlights

• Digital Inputs & Outputs — Two isolated dry-contact inputs monitor the digital status of field devices, and two digital outputs integrate external relays, solenoids, and more.
• Analog Inputs & Output — Two 4–20 mA inputs and one 4–20 mA output, with all necessary protections, connect sensors, transmitters, and actuators. Voltage and thermistor inputs are also available.
• Serial Communication — Two RS-232 ports and one RS-485 port communicate with field instruments, utility meters, and more.
• Wireless Connectivity — Cellular, Wi-Fi + BT, BT Mesh, Wi-SUN, Zigbee, and LoRa options, with dual SIM slots for redundancy (one SIM active at a time).
• Self-Health-Check — Periodic self-checks upload all related data, including errors and alarms, to the cloud for preventive maintenance and reduced downtime.
• Location — GNSS is available as an option.

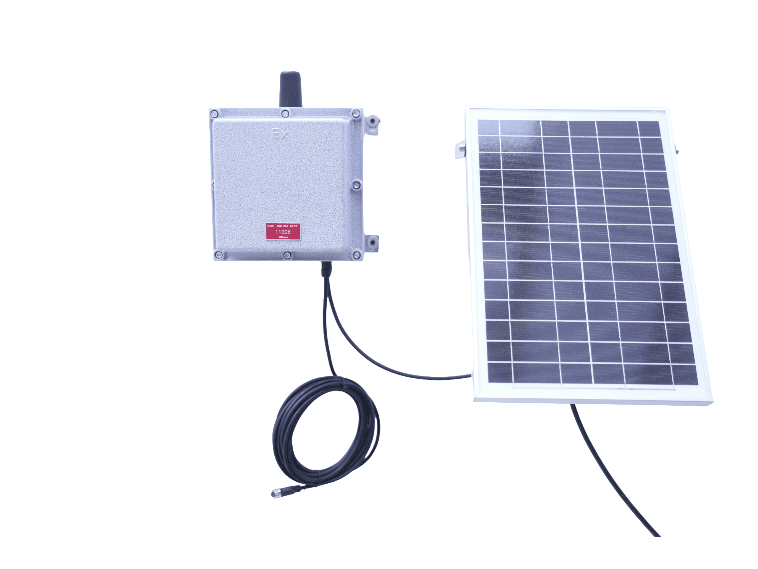

• Built-in Solar MPPT Charger — Integrated buck-boost solar MPPT charger.
• Platform-Agnostic Architecture — Seamless deployment across diverse cloud and on-premise environments.

Interfaces & I/O

Specifications

• Serial: 1 × RS-232, 1 × RS-485, and 1 × configurable RS-232 (handshaking or dual null-modem)
• Digital I/O: 2 × isolated digital inputs (DI) and 2 × isolated SSR digital outputs (DO)
• Analog inputs: 2 × 0.3–35 V, 2 × 4–20 mA, and 1 × 10K Ohm thermistor
• Analog output: 1 × 4–20 mA

Connectivity

Specifications

• Cellular: 4G LTE Cat-4 with 2G fallback (5G optional)
• Wi-Fi
• Bluetooth
• Optional wireless interfaces: LoRa, Wi-SUN, Zigbee, and GNSS

Power & Battery

Specifications

• Power supply from 7 V to 20 V supported
• Integrated MPPT for solar-powered applications, with a 5 W to 30 W solar panel recommended depending on the application
• Smart buck-boost with CC/CV battery charging
• Supports lithium iron phosphate, lithium-ion, and lead-acid batteries
• Temperature-compensated battery charging and monitoring of critical parameters
• Optimized for long-term unattended operation

Device Management

Specifications

• Seamless over-the-air (OTA) firmware updates
• Local data buffering with high-endurance non-volatile memory
• Bluetooth-based local configuration and diagnostics
• LED indicators for system status

Electrical Ratings

Specifications

• Input voltage: 7 V minimum operating, 20 V maximum operating, 22 V absolute maximum
• Input current @ 12 V: 25 mA standby, 40 mA idle (LTE standby), 80 mA operational
• Maximum input current: 450 mA
• Block-level power management

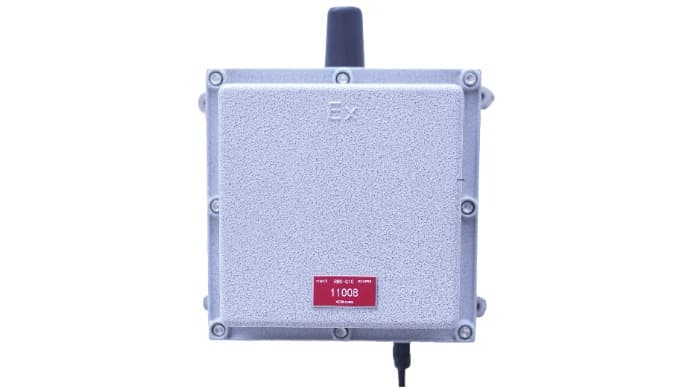

Environmental & Enclosure

Specifications

• Operating temperature: -20 °C to 65 °C
• Storage temperature: -40 °C to 85 °C
• Relative humidity: 95%
• Ingress protection: IP66
• Casing: aluminum with all necessary gaskets
